華臻科技 ElectrixWave 連結全球頂尖解決方案供應商，為台灣與越南的客戶提供 GPS 模擬器、Pogo Pin 客製化、高階儀器租賃／維修，以及自動化溫控測試方案 — 以最具成本效益的方式，讓客戶的產品開發與量產更順利。 ElectrixWave connects customers in Taiwan and Vietnam with leading global solution providers — GPS simulators, custom Pogo Pin connectors, premium instrument rental and repair, and automated thermal test systems — delivered in the most cost-effective way to move products from R&D to mass production.
我們專注於 RF/mmWave 技術支援與創新，串連全球方案領導廠商，協助台灣與越南客戶取得最合適的解決方案。We focus on RF/mmWave technical support and innovation, connecting customers in Taiwan and Vietnam with leading global solution providers to find the best fit for their needs.

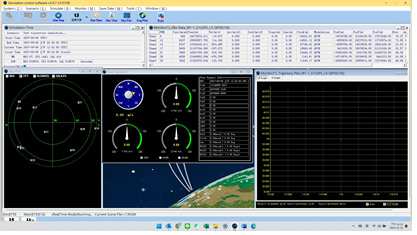

支援目前所有在軌衛星導航星系，適用高動態、抗干擾、INS 測試，10 ms 即時硬體迴路模擬，12 通道，適合大規模自動化與無人測試環境。Supports all GNSS constellations currently in orbit. Built for high-dynamics, anti-jamming and INS testing, with 10 ms real-time hardware-in-the-loop simulation across 12 channels — ideal for large-scale, unmanned automated test environments.
支援衛星導航訊號錄製與回放 BDS/GPS/GLONASS/Galileo/QZSS 等）12 通道波形，產線開機即播放 GPS 訊號，GUI 操作簡單。Supports recording and playback of GNSS signals (BDS/GPS/GLONASS/Galileo/QZSS, etc.) across 12 waveform channels. Powers on and plays GPS signal immediately on the production line, with a simple GUI.
提供 Automotive、CPU 及半導體應用之高階 Pogo Pin 方案，支援全客製化設計，以最具成本效益的方式協助客戶取得最佳解決方案。Premium Pogo Pin solutions for automotive, CPU and semiconductor applications, with fully customizable designs — helping customers find the best solution in the most cost-effective way.
→ 查看 Pogo Pin 與老化測試插座方案View Pogo Pin & Burn-In Socket Solutions
於台灣提供高階測試儀器租賃／販售服務，涵蓋 Agilent、R&S、LitePoint、Anritsu 等品牌訊號源、頻譜分析儀、無線通訊測試儀等。Rental and sale of premium test instruments in Taiwan, covering signal generators, spectrum analyzers and wireless communication testers from brands such as Agilent, R&S, LitePoint and Anritsu.
提供台灣與越南在地的儀器維修服務，協助客戶降低設備停機時間、延長儀器使用壽命。Local instrument repair service in Taiwan and Vietnam, helping customers reduce equipment downtime and extend instrument lifespan.
因應 CPU、GPU、車用及網通處理器等高功率元件已成為產業標準所設計的創新方案，適用車用低／高溫產線測試，體積小、效率高。An innovative solution built for the industry-wide rise of high-power components — CPU, GPU, automotive and networking processors — suited to automotive high/low-temperature production line testing, with a compact footprint and high efficiency.
10 ms 即時硬體迴路模擬，12 通道，支援目前所有在軌衛星導航星系，適用高動態、抗干擾與 INS 測試，適合大規模自動化與無人測試環境。10 ms real-time hardware-in-the-loop simulation across 12 channels, supporting all GNSS constellations currently in orbit — built for high-dynamics, anti-jamming and INS testing in large-scale, unmanned automated test environments.
攜手專業探針與測試治具製造夥伴，從探針設計、Socket 開模到量產一站到位，涵蓋 BGA、CPU、GPU、半導體與新能源等應用，以最具成本效益的方式協助客戶完成老化測試（Burn-In）與訊號量測需求。In partnership with a specialized probe-pin and test-socket manufacturer, we cover everything from pin design and socket tooling to mass production — serving BGA, CPU, GPU, semiconductor and new-energy applications with cost-effective burn-in and signal test solutions.

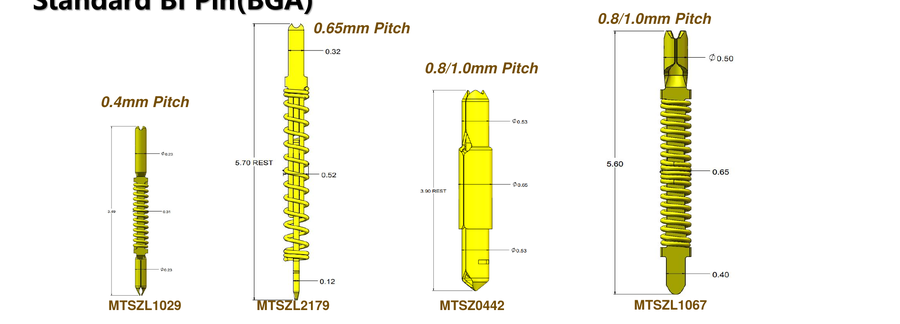

提供 0.4mm、0.65mm、0.8/1.0mm 節距可選，接觸力 21–30gf，耐溫範圍 -55°C 至 150°C，電流承載最高 5A。Offered in 0.4mm, 0.65mm and 0.8/1.0mm pitch with 21–30gf contact force, a −55°C to 150°C rating, and up to 5A current-carrying capacity.

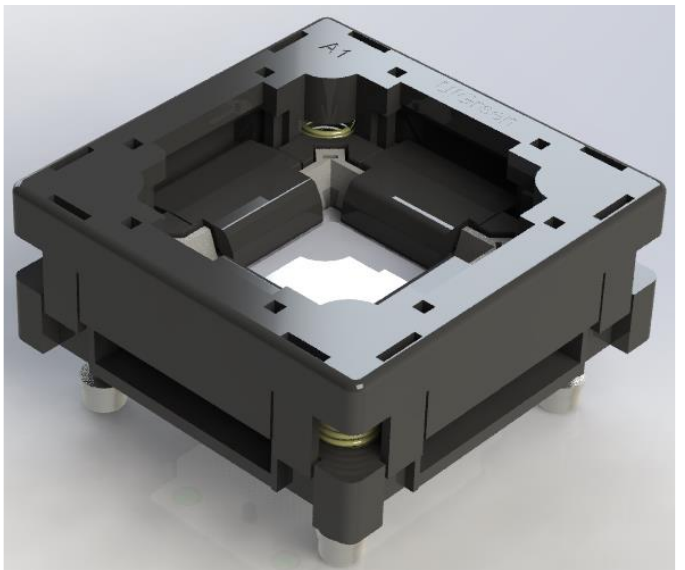

Socket／LID 分離式設計確保測試穩定性，適用封裝尺寸 6–20mm，最高 800 pin，節距 0.40–0.80mm，模具量產（單套 >500 組）。Split socket/LID design for stable testing — 6–20mm package size, up to 800 pins, 0.40–0.80mm pitch, tooled for volume production (>500 sets per mold).

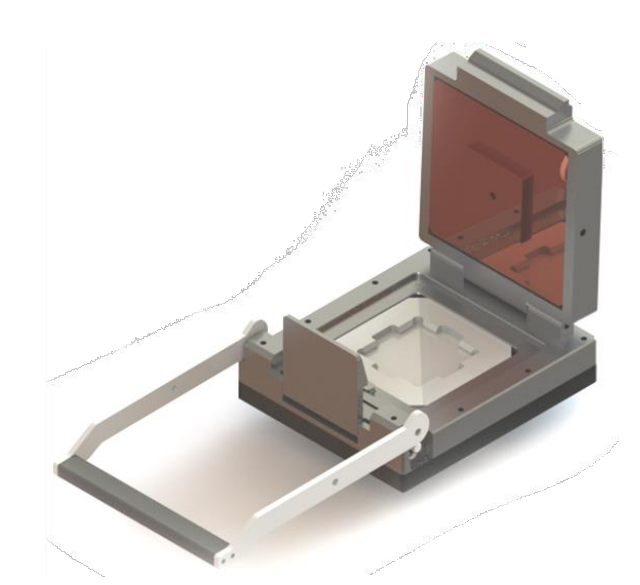

內建散熱片上蓋設計，適用大型高功率封裝，封裝尺寸 10–70mm，最高 6000 pin，節距 0.3–1.27mm，可選配溫控上蓋。Integrated heat-sink LID for large, high-power packages — 10–70mm package size, up to 6000 pins, 0.3–1.27mm pitch, with optional temperature-control LID.
整合熱電偶與加熱棒，最高支援 9000 pin、功率達 1000W，適用高階 CPU/GPU 與客製封裝的溫控老化測試。Integrated thermocouple and heater support up to 9000 pins and 1000W — built for temperature-controlled burn-in of high-end CPU/GPU and custom packages.

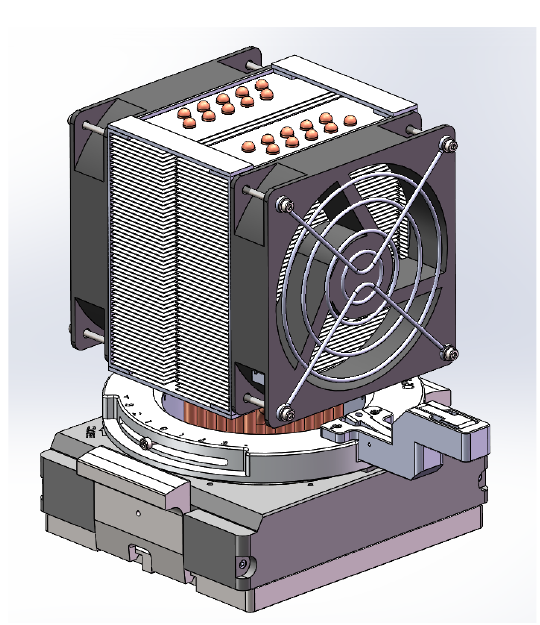

單塔／雙塔氣冷散熱設計，功率範圍涵蓋 50–800W，搭配熱管與風扇模組，依功率等級彈性配置。Single- or dual-tower air-cooling design covering a 50–800W power range, with heat-pipe and fan modules configurable to match the required power tier.
專業機加工／衝壓／射出成型與自動化組裝產線，搭配 X 光成像、三次元量測與環境／衝擊振動測試，確保高精度、高良率出貨。In-house CNC machining, stamping, injection molding and automated assembly lines, backed by X-ray imaging, CMM inspection and environmental/shock-vibration testing for high-precision, high-yield output.
| Pin Number | Package | Pitch | Force | Temperature | Current |
|---|---|---|---|---|---|
| MTSZL1029 | BGA | 0.4 mm | 23.0gf@0.48mm | -55°C to 150°C | 3A@68°C Lab |
| MTSZL2179 | BGA | 0.65 mm | 30.0gf@0.70mm | -55°C to 150°C | 4A@70°C Lab |
| MTSZ0442 | BGA | 0.8~1.0mm | 25.0gf@0.60mm | -55°C to 130°C | 3A@67°C Lab |
| MTSZL1067 | BGA | 0.8~1.0mm | 21.0gf@0.70mm | -55°C to 150°C | 5A@73°C Lab |

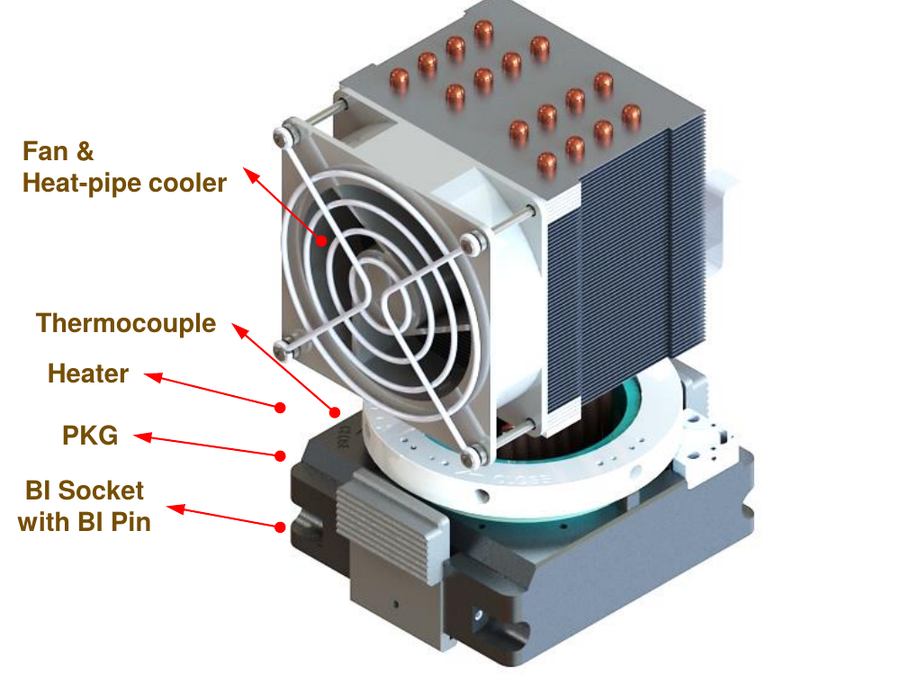

針對 CPU、GPU 與客製封裝的高接腳數老化測試需求，整合式溫控上蓋內建熱電偶與加熱棒，搭配風扇／熱管散熱模組，可依封裝尺寸與功率彈性配置，達成穩定的溫度控制與長時間老化測試。Designed for high pin-count burn-in of CPU, GPU and custom packages, the integrated temperature-control LID houses a thermocouple and heater, paired with fan/heat-pipe cooling modules that scale to package size and power for stable, long-duration burn-in testing.
| Part No. | Body Size Min | Body Size Max | Length A (mm) | Width B (mm) | Height C (mm) |
|---|---|---|---|---|---|
| MTZT1010-XX | 1×1 | 8×8 | 30 | 20 | 17 |
| MTZT1020-XX | 5×5 | 15×15 | 40 | 30 | 17 |
| MTZT1030-XX | 10×10 | 25×25 | 55 | 50 | 25 |
| MTZT1040-XX | 20×20 | 45×45 | 75 | 70 | Depending on HS |
| MTZT10700-XX | 40×40 | 70×70 | 115 | 105 | Depending on HS |
| MTZT1080-XX | 70×70 | 80×80 | 135 | 125 | Depending on HS |
部分庫存，實際供貨請洽業務。Partial inventory shown — please contact sales for availability.
| Brand | Model |
|---|---|
| Agilent | N5182A |
| Agilent | N5183A |
| Agilent | N5172B |
| Agilent | N8257D |
| Agilent | E4440 |
| Agilent | N9010A |
| Agilent | N9020A/B |
| Agilent | N9030A/B |
| Agilent | E4418A/B |
| Agilent | E5071A/B/C |
| Agilent | E4440A |
| Agilent | 86100C/D |
| Agilent | 86105C/D |
| Agilent | N9000A/B |
| Agilent | 34461A |
| R&S | SMBV100A |
| R&S | ZNB/D |
| R&S | NRP2 |
| R&S | CMW500 |
| R&S | CMW270 |
| R&S | CMW100 |
| R&S | SMB100A |
| R&S | FSU/FSV/FSL |
| LitePoint | IQxel-80 |
| LitePoint | IQxel-160 |
| LitePoint | IQxel-MW |
| LitePoint | IQxel-MW-7G |
| LitePoint | IQxel-M6 |
| LitePoint | IQxel-M8 |
| Anritsu | MT8870A |
| Anritsu | MT8852A/B |
| Anritsu | MT8820C |
ElectrixWave 是一支專注於射頻／毫米波技術支援與創新的團隊，連結全球方案領導廠商與製造商，協助台灣客戶取得最合適的解決方案。ElectrixWave is a team focused on RF/mmWave technical support and innovation, connecting leading global solution providers and manufacturers to help customers in Taiwan find the best-fit solution.
